Dettagli del prodotto

Descrizione

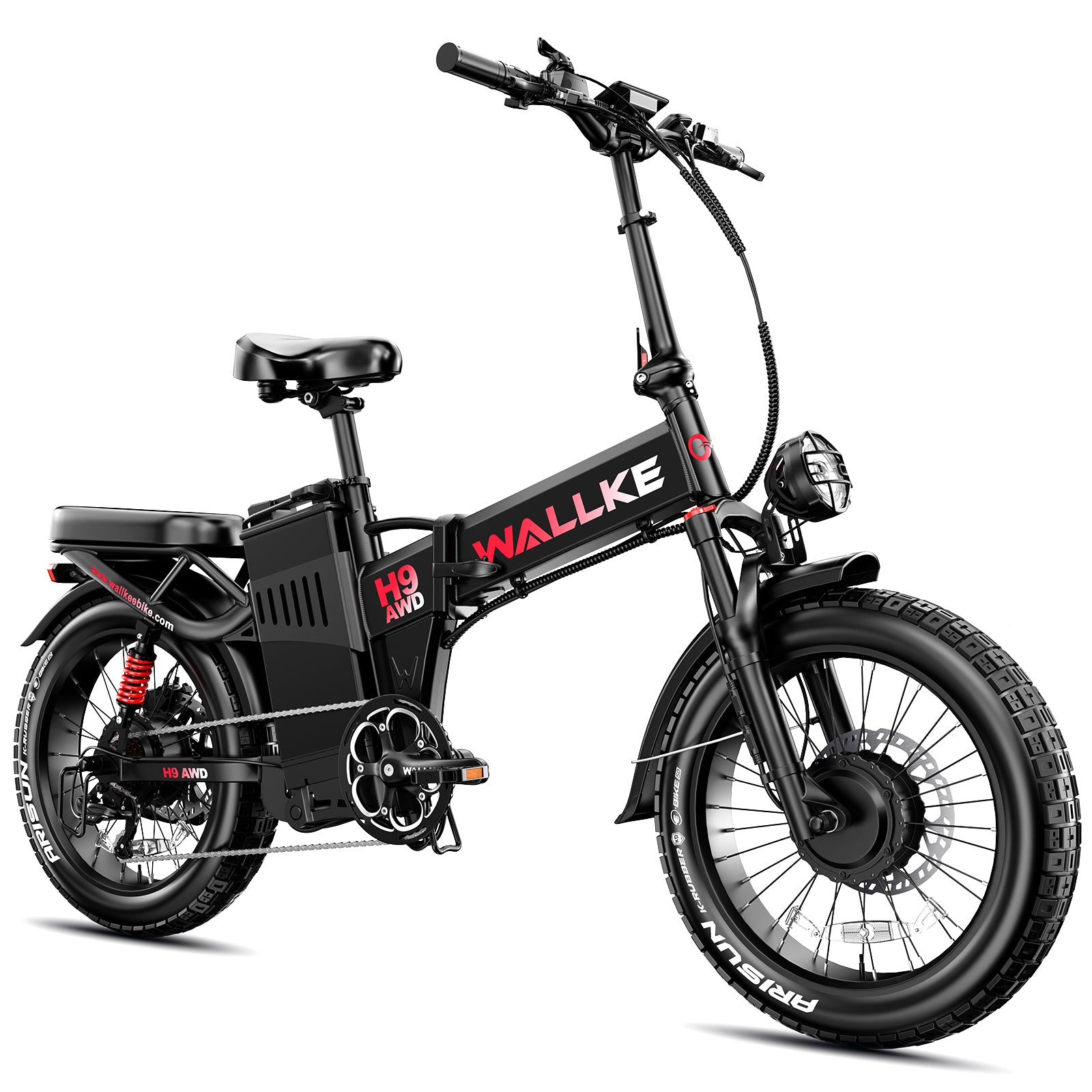

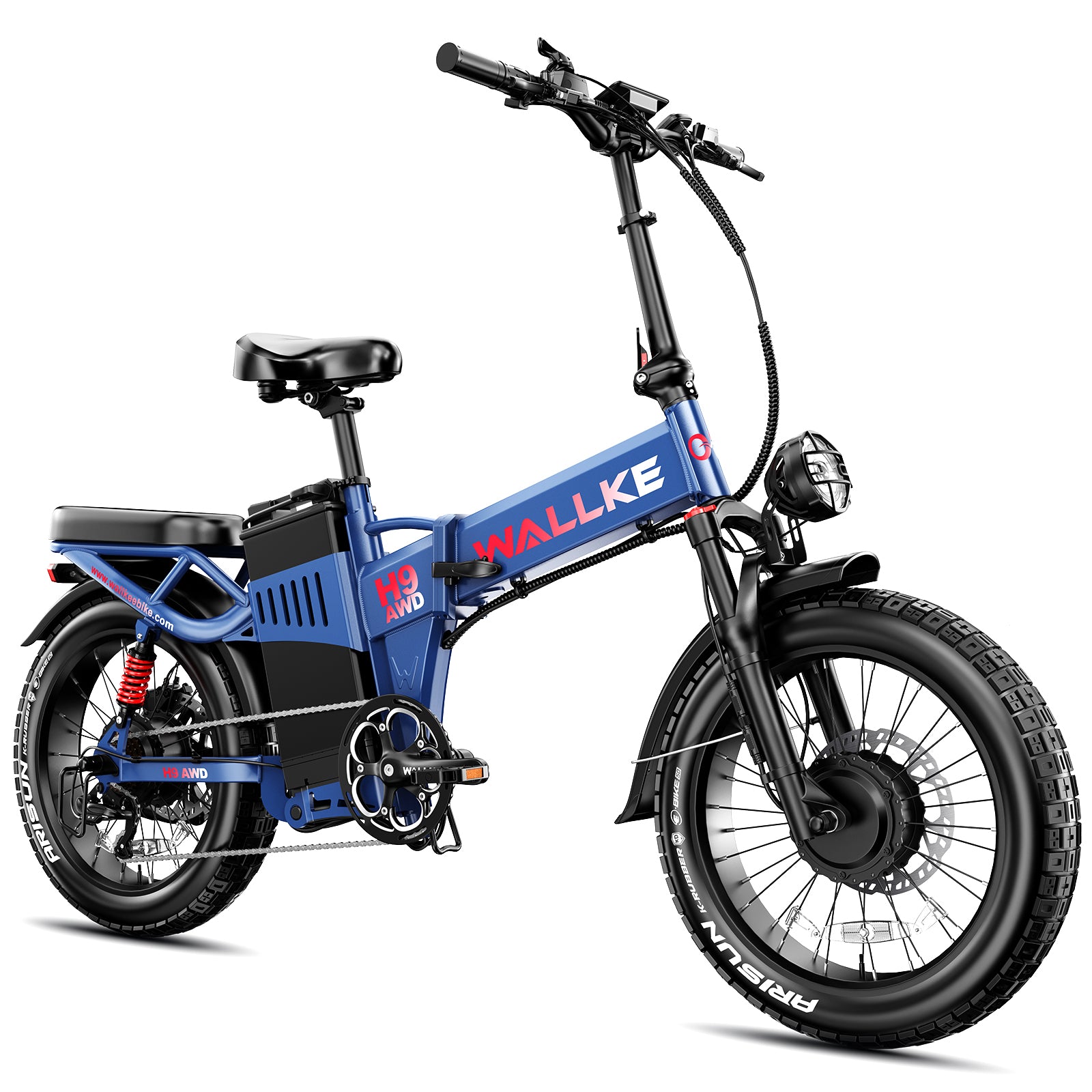

Questa e-bike pieghevole H9 AWD combina due motori da 1000 W con una batteria da 40 Ah integrata e rimovibile, per offrire prestazioni potenti e un’ampia autonomia. Le sospensioni complete, i freni idraulici e un pannello di controllo LED intelligente assicurano controllo e comfort sui terreni accidentati.

Prestazioni

Coppia massima: 95N·m + 95N·m
Sistema di cambio: Shimano a 7 velocità
Velocità: 25 km/h (conforme alle norme UE);
Fino a 60 km/h (37 mph) quando sbloccata.
Modalità di assistenza: pedalata assistita (PAS)
Livelli di assistenza: 3 livelli
Autonomia: 50-70 km

Batteria e sistema di alimentazione

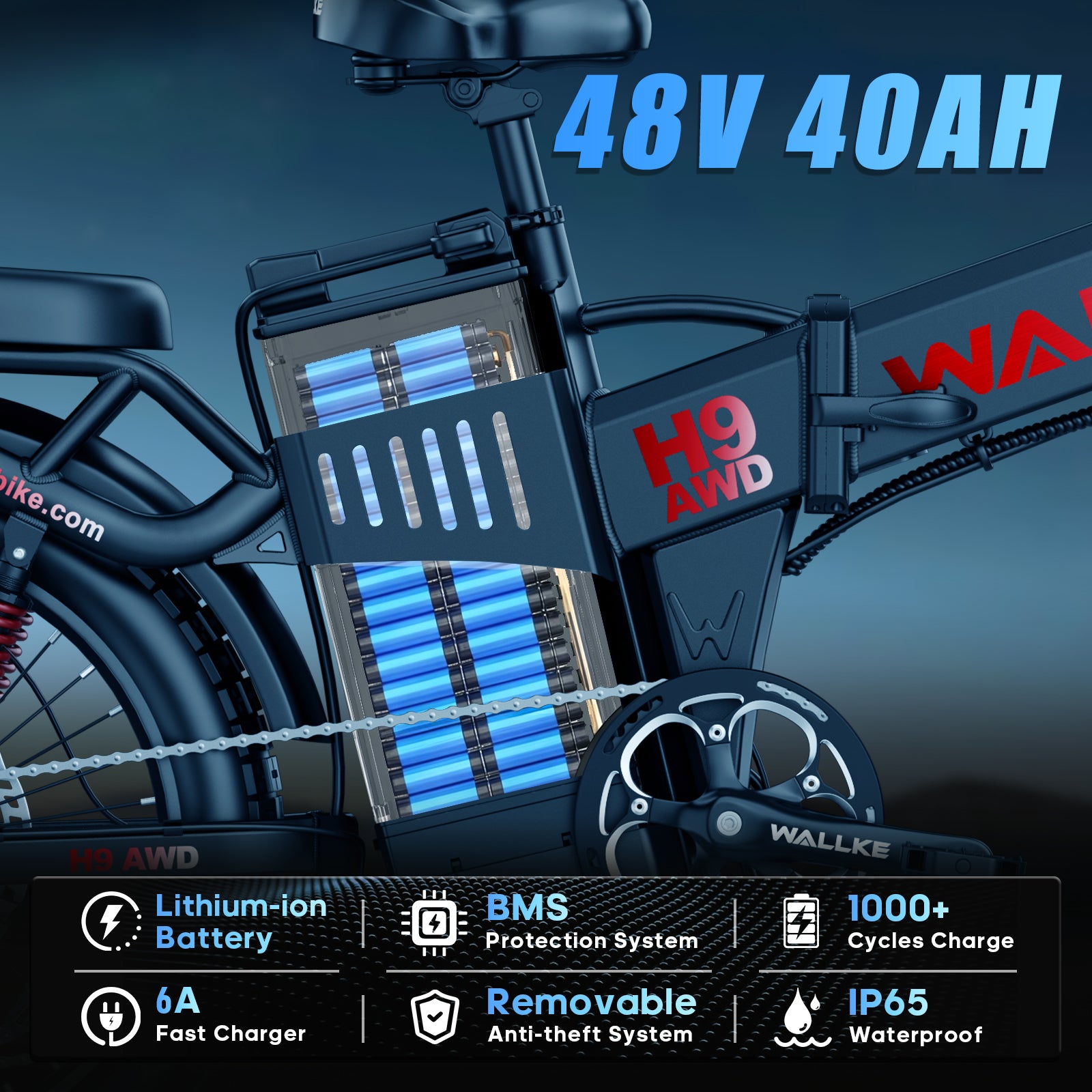

Batteria: Batteria agli ioni di litio (48V 40Ah)
Tipo di batteria:Batteria rimovibile
Gestione della batteria:Protezione BMS intelligente
Ricarica:Caricabatterie rapido da 6A
Tempo di ricarica:4–6 ore

Telaio e componenti

Controller:Anteriore 20 A + posteriore 22 A, integrati in un unico sistema di controllo

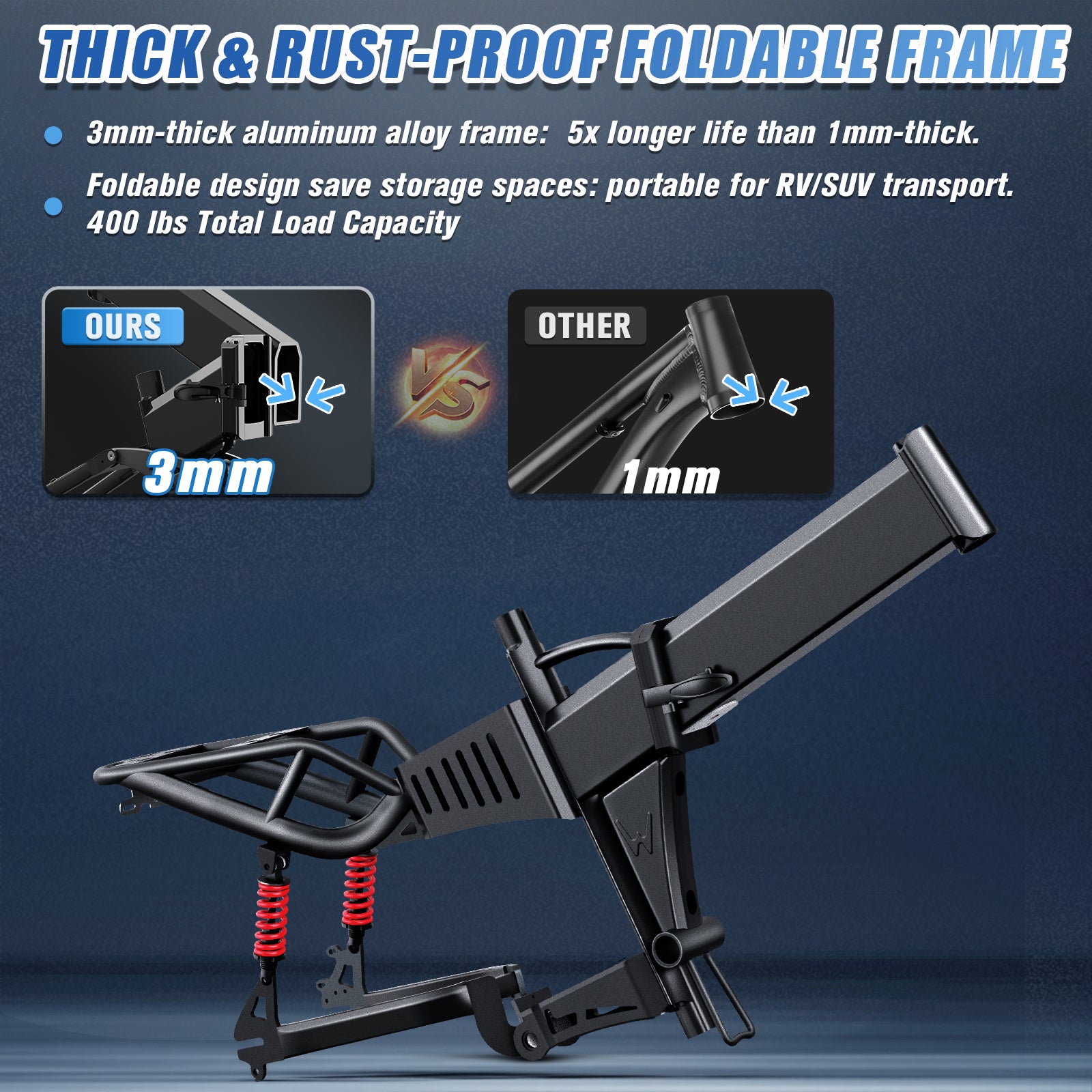

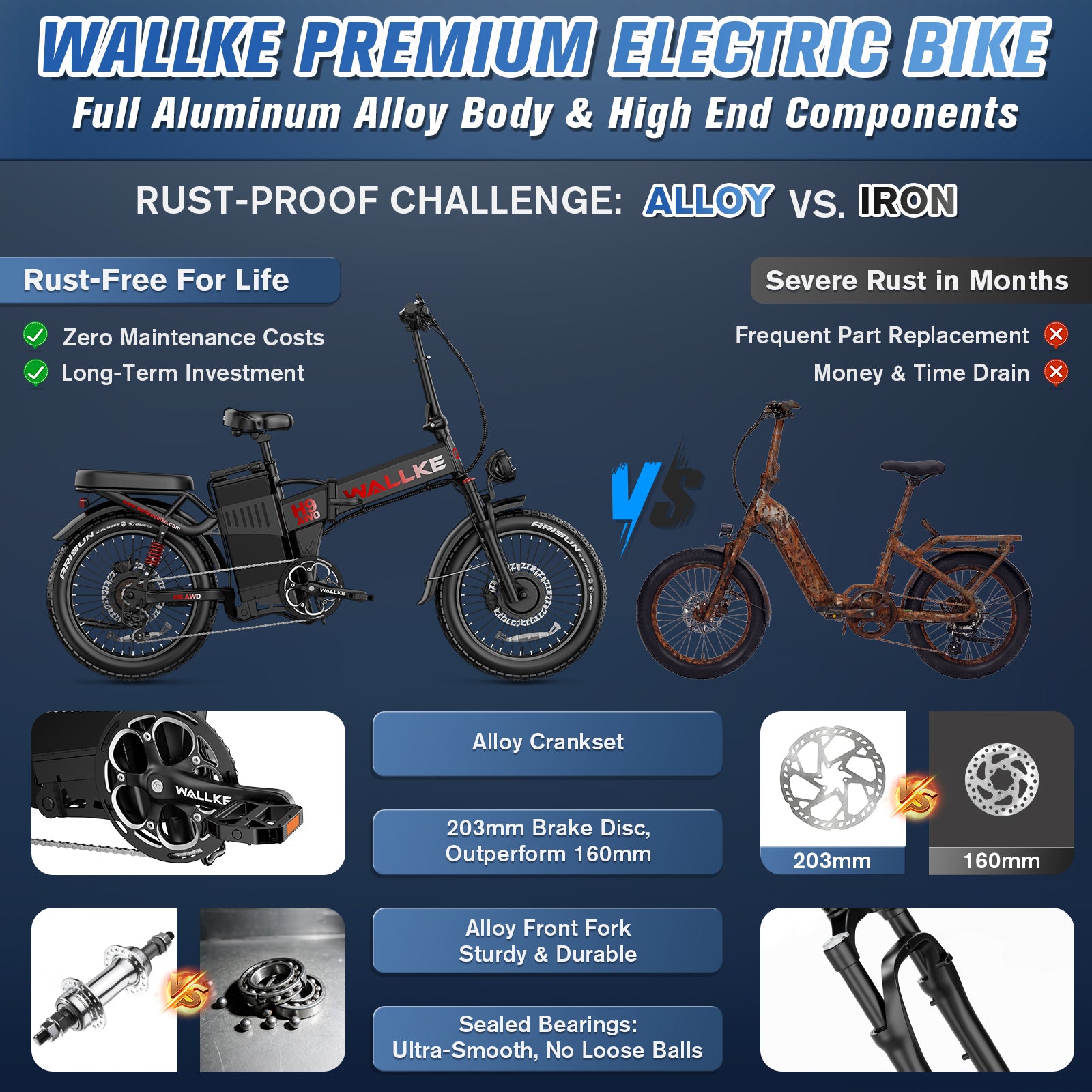

Telaio:Telaio rinforzato in lega di alluminio 6061

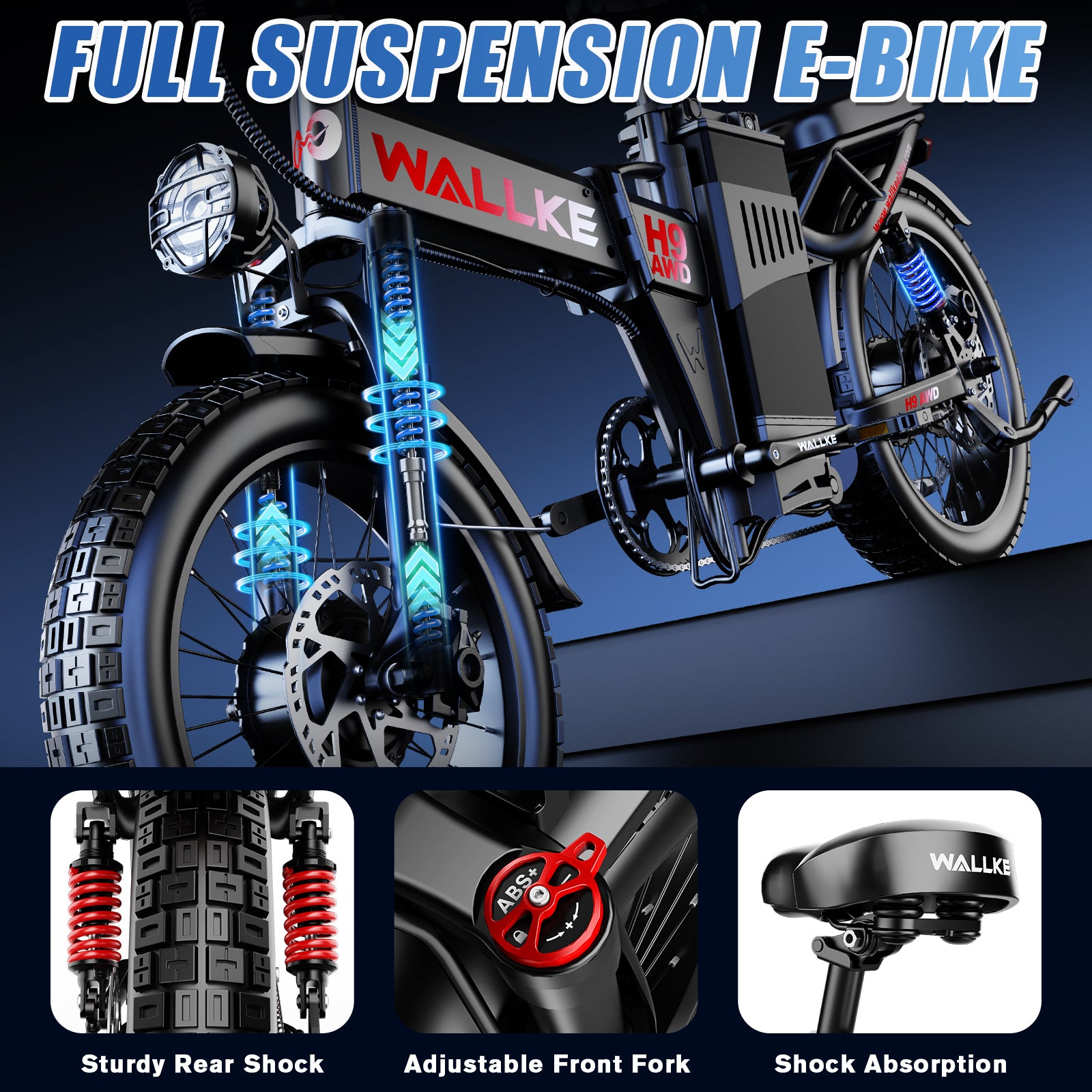

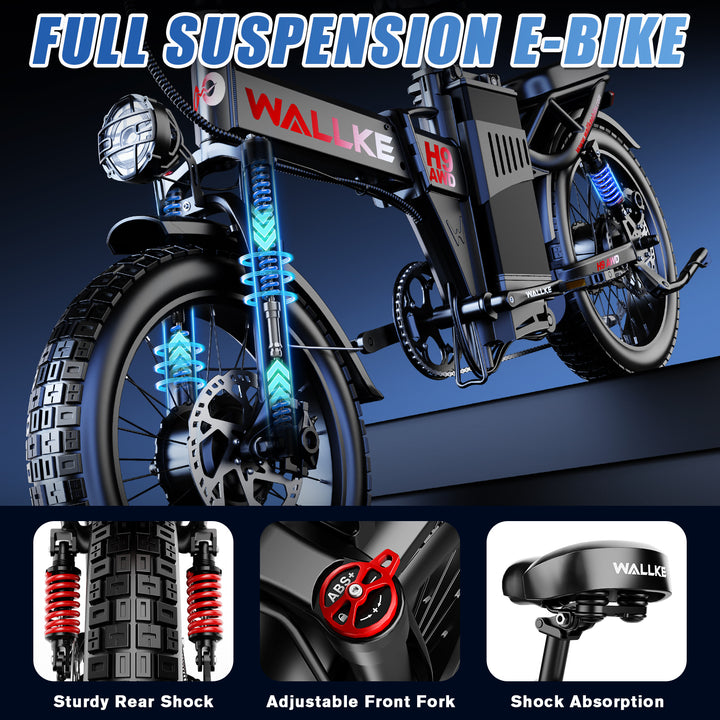

Sospensione anteriore:Forcella ammortizzata rinforzata da 20 pollici in lega di alluminio idraulica, con blocco e regolazione
Sospensione posteriore:Doppi ammortizzatori posteriori in lega di alluminio con molle rosse
Freni:Freni a disco idraulici a doppio pistoncino con pompa dell’olio e funzione di interruzione della frenata
Pneumatici:Pneumatici fat da 20 × 4 pollici rinforzati e antiforatura, con rete protettiva interna
Carico massimo:181 kg
Faro anteriore:Luce anteriore LED da 48 V e 1000 lm
Fanale posteriore:Fanale posteriore integrato con segnale di frenata

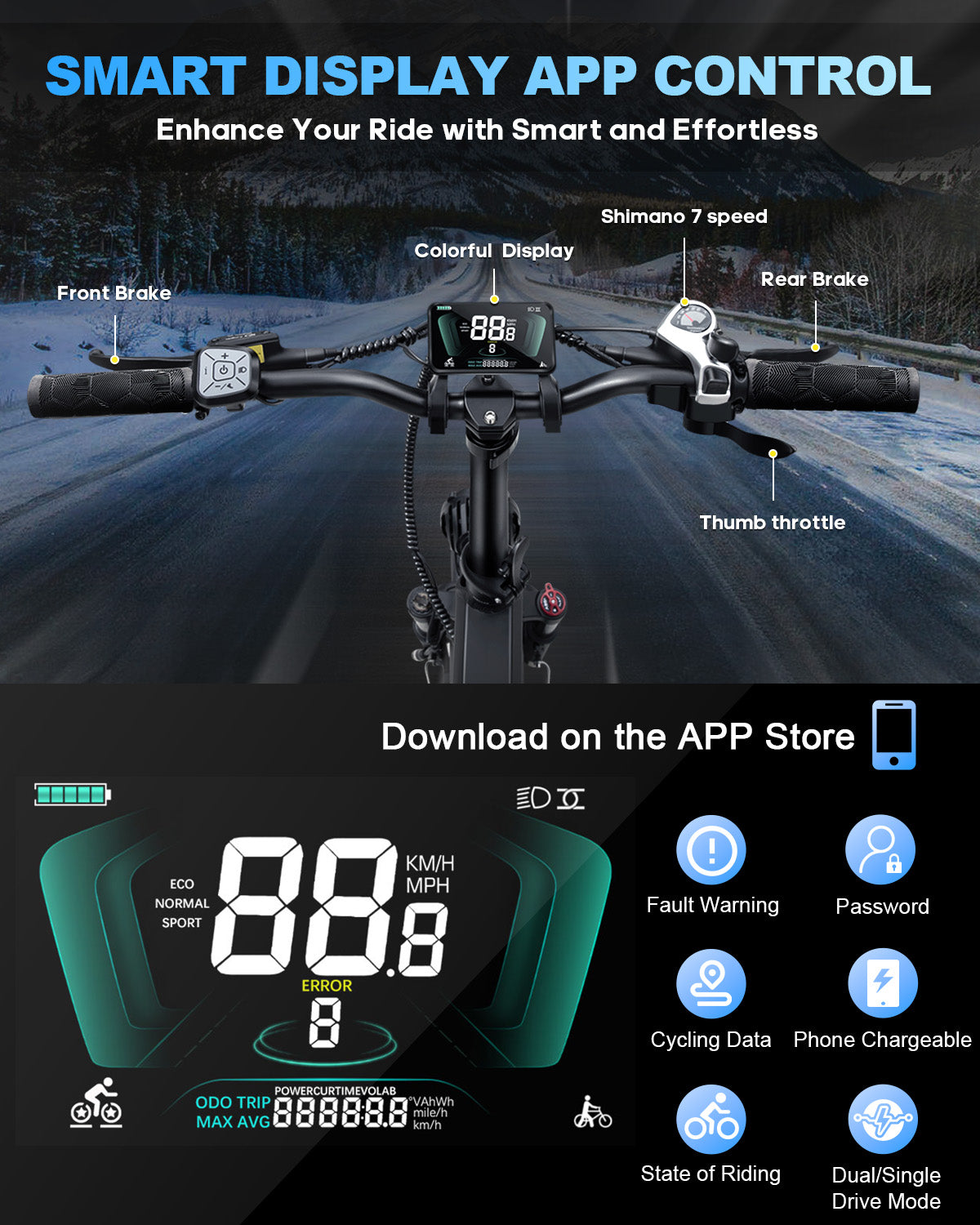

Display:Protocollo dual-drive 5S Yolin YL81F-H con impostazioni 8P
Controllo tramite app:Sì

Manuale utente

Questo manuale per il proprietario include istruzioni di montaggio e manutenzione che potrebbe essere necessario eseguire a intervalli frequenti per mantenere la eBike Wallke efficiente e sicura. Non eseguire mai interventi sulla eBike Wallke che non siano indicati in questo manuale. Leggere attentamente tutte le istruzioni prima del montaggio per garantire il corretto funzionamento della eBike Wallke.

Incluso nella confezione

  • Bicicletta elettrica

  • Batteria

  • Kit di attrezzi

  • Caricabatterie

  • Manuale utente

  • Chiavi della batteria

Domande frequenti

Quali metodi di pagamento accettate?

Offriamo metodi di pagamento sicuri e flessibili per i clienti europei, tra cui PayPal, Visa, Mastercard, Klarna e altri metodi di pagamento locali, ove disponibili.

I metodi di pagamento disponibili possono variare a seconda del Paese e verranno mostrati al momento del pagamento.

Posso pagare a rate?

Sì. Klarna e altri fornitori di servizi di pagamento possono offrire opzioni di pagamento rateale o flessibile, a seconda del paese, dell’importo dell’ordine e dei requisiti di idoneità.

Da dove vengono spediti gli ordini europei?

Tutti gli ordini europei di H9 AWD 40Ah vengono spediti dal nostro magazzino europeo in Polonia.

Con quale rapidità verrà spedito il mio ordine?

La maggior parte degli ordini con prodotti disponibili viene spedita entro 2–3 giorni lavorativi.

Una volta spedito l’ordine, riceverai le informazioni di tracciamento per seguire la consegna.

Per i prodotti in preordine, la spedizione avverrà entro la data stimata indicata nella pagina del prodotto.

Posso restituire la mia e-bike se cambio idea?

Sì. Per gli acquisti idonei nell’UE, i consumatori hanno generalmente un periodo di recesso di 14 giorni per gli acquisti online, nel rispetto delle leggi applicabili e delle condizioni della nostra politica di reso.

Contattaci prima di restituire la tua eBike, così il nostro team potrà fornirti le istruzioni corrette per il reso.

E se la mia eBike arriva danneggiata?

Contattaci il prima possibile se il tuo pacco o la tua eBike arriva danneggiata.

Ti consigliamo di scattare foto o video del pacco e dei danni prima di smaltire l’imballaggio originale.

Il nostro team di assistenza esaminerà la situazione e ti aiuterà a individuare la soluzione più adatta.

E se manca qualcosa nel mio pacco?

Contatta il nostro team di assistenza fornendo i dati dell’ordine e, se possibile, delle foto del pacco e del suo contenuto.

Verificheremo la spedizione e, se necessario, ti aiuteremo a ricevere l’articolo mancante.

Sono disponibili pezzi di ricambio in Europa?

Sì. Forniamo parti di ricambio e accessori per H9 AWD.

A seconda del problema, i componenti disponibili possono includere batterie, caricabatterie, motori, controller, componenti dei freni, pneumatici, camere d’aria, parafanghi, portapacchi, cestini e altri ricambi specifici per il modello.

Contatta il nostro team di assistenza indicando i dati dell’ordine e del modello, così potremo individuare il ricambio corretto.

Che cosa rende diverso l'H9 AWD 40Ah?

La H9 AWD 40Ah combina prestazioni a doppio motore, pneumatici larghi, sospensioni, freni idraulici e una batteria standard per eBike da 40Ah in un'unica configurazione.

Utilizza due motori per fornire potenza a entrambe le ruote, contribuendo a migliorare la trazione e il controllo.

Può essere particolarmente utile quando si pedala su:

  • Salite ripide
  • Ghiaia
  • Strade sterrate
  • Superfici sconnesse
  • Sentieri
  • Terreni cedevoli

Se pedali principalmente su strade asfaltate, potresti non aver bisogno della trazione aggiuntiva della trazione integrale (AWD). Ma se i tuoi percorsi includono spesso salite o terreni accidentati, la trazione integrale può offrire maggiore sicurezza.

Anche se la H9 AWD è adatta alla guida fuoristrada, può essere utilizzata anche per gli spostamenti quotidiani, il tragitto casa-lavoro e le gite di piacere.

Il sistema AWD offre trazione aggiuntiva quando serve, mentre le sospensioni e gli pneumatici larghi contribuiscono a rendere confortevole la pedalata su superfici diverse.

Posso guidare legalmente l'H9 AWD sulle strade pubbliche in Europa?

Le normative sulle e-bike variano da un Paese europeo all’altro e possono dipendere da fattori come la potenza del motore, la velocità assistita, il funzionamento dell’acceleratore, l’immatricolazione, l’assicurazione e i luoghi in cui si circola.

Prima di circolare su strade pubbliche, piste ciclabili o altre aree pubbliche, verifica i requisiti applicabili nel tuo Paese.

Per chi è più adatto l’H9 AWD 40Ah?

La H9 AWD 40Ah è perfetta per chi cerca:

✓ Trazione con doppio motore

✓ Ottime prestazioni in salita

✓ Sospensioni confortevoli

✓ Stabilità grazie agli pneumatici larghi

✓ Adatta agli spostamenti quotidiani

✓ Avventure nel fine settimana e fuoristrada

L’H9 AWD 40Ah è adatto ai principianti?

Sì, ma i ciclisti dovrebbero prendere confidenza con il peso, la potenza, la frenata e l'acceleratore della bici prima di raggiungere velocità più elevate o affrontare terreni impegnativi.

Consigliamo di iniziare in un'area sicura e aperta e di prendere gradualmente confidenza con i comandi della bici.
